Junction Boxes For Pt100 Ex
Ex Proof Heat Tracing Equipment - Junction Boxes For Pt100 Ex

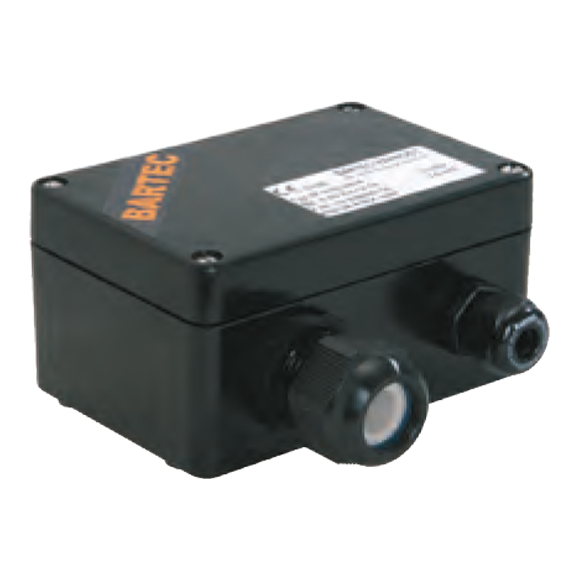

The Pt100 Ex junction boxes allow one or more two-wire or three-wire Pt100 resistance thermometers to be connected to the signal line. The enclosures have the appropriate terminals and the required cable glands.
Junction Boxes For Pt100 Ex
The Pt100 Ex junction boxes allow one or more two-wire or three-wire Pt100 resistance thermometers to be connected to the signal line. The enclosures have the appropriate terminals and the required cable glands. Aluminium junction boxes are available upon request.
Application Areas:
- Oil and gas industry (refineries, platforms)
- Chemical industry (chemical plants)
- Mining
- Paint industry
- Flour and sugar factories
- High temperature furnaces (in hazardous areas)
- Heat treatment plants (in hazardous areas)
- Hazardous material storage
- Extruder Heating (in hazardous areas)
- Hot press applications (in hazardous areas)
- Heating cable applications (in hazardous areas)
- Sensor connections (in hazardous areas)
- All applications requiring Pt100 sensor connections in hazardous areas.
Junction Boxes For Pt100 Ex
| TECHNICAL DATA | |
| Protection class according to EN 60529 |
Cover gasket IP 65 Cable gland for power supply cables IP 67 |
| Nominal voltage | max. AC 60 V |
| Supply cable, cross section | 2.5 mm² |
| Impact resistance | 7 Nm |
| Material | polyester, glass-fibre reinforced |
| Ambient temperature range |
-20 °C to +40 °C T6 -20 °C to +55 °C T5 |
Junction Boxes For Pt100 Ex
The Pt100 Ex junction boxes allow one or more two-wire or three-wire Pt100 resistance thermometers to be connected to the signal line. The enclosures have the appropriate terminals and the required cable glands. Aluminium junction boxes are available upon request.
Application Areas:
- Oil and gas industry (refineries, platforms)
- Chemical industry (chemical plants)
- Mining
- Paint industry
- Flour and sugar factories
- High temperature furnaces (in hazardous areas)
- Heat treatment plants (in hazardous areas)
- Hazardous material storage
- Extruder Heating (in hazardous areas)
- Hot press applications (in hazardous areas)
- Heating cable applications (in hazardous areas)
- Sensor connections (in hazardous areas)
- All applications requiring Pt100 sensor connections in hazardous areas.
